Standard Frames
2001 Standard Road Frame Specifications:
- English threading
- seat and down tube water bottle bosses
- derailleur cable stops
- Italian style front gear boss
- cable guides under bottom bracket
- chainstay cable stop
- internal top tube brake cable routing
- Reynolds 531 tubing (Reynolds 853
tubing optional)
- close clearances for 700C or 650B wheels

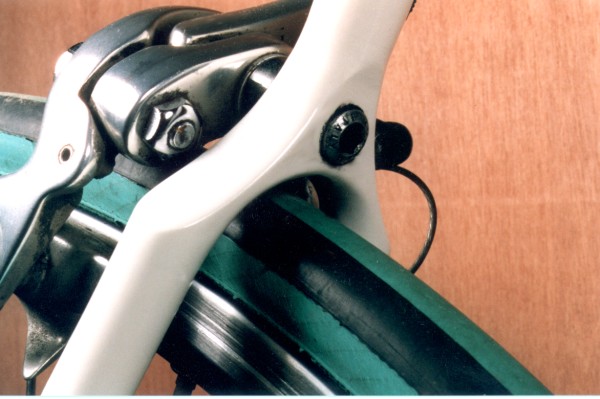

- fork crown and wishbone counterbored for
recessed brake bolt allen nut
- 100/130mm hub spacing

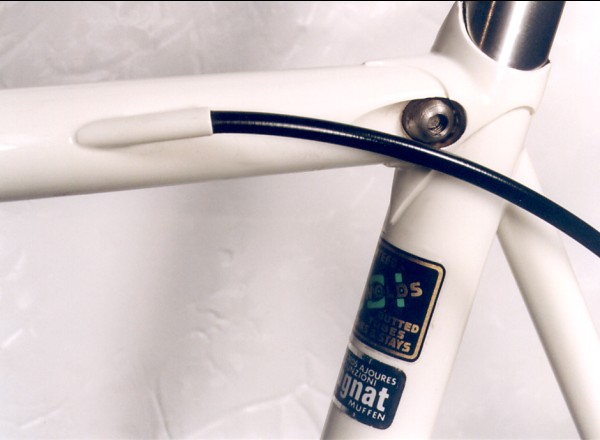

- Strawberry designed and patented seat lug binder
- investment cast wishbone
- lifetime warranty
Standard Frame Dimensional
Specifications:
| Wheel Size |
Seat
Tube
cm (In.) |
Top
Tube
cm |
B.B.
Height
cm |
Head
Angle
deg |
Seat
Angle
deg |
| 650 |
45 (17" 3/4) |
49.0 |
27.0 |
73.0 |
74.0 |
| 650 |
46 (18") |
50.5 |
27.0 |
73.0 |
74.0 |
| 650 |
47 (18"1/2) |
51.5 |
27.0 |
73.0 |
74.0 |
| 650 |
48.25 (19") |
52.5 |
27.0 |
73.0 |
74.0 |
| 650 |
49.5 (19"1/2) |
53.0 |
27.0 |
73.0 |
74.0 |
| 650 |
51 (20") |
54.0 |
27.0 |
73.0 |
74.0 |
| 700 |
52 (20"1/2) |
54.0 |
27.0 |
74.0 |
74.0 |
| 700 |
54 (21"1/4) |
55.0 |
27.0 |
74.0 |
73.0 |
| 700 |
56 (22") |
56.5 |
27.0 |
74.0 |
73.0 |
| 700 |
58 (22"7/8) |
58.0 |
27.0 |
74.0 |
72.0 |
| 700 |
60 (23"5/8) |
60.0 |
27.0 |
74.0 |
72.0 |
To see what we have in stock,
please visit our store page.
If you can't find what you need here,
we can build a frame to your specifications. Please visit the custom
frames page.
|
